Tsurumi Pump GSZ-75-4L

Double tap to zoom



Discharge sizes from 6-10 inches and horsepower ranges from 30-100 hp.

4 pole, 1800 rpm motors or 6 pole, 1200 rpm motors.

Seal Pressure relief ports on 4 pole, 1800 rpm models.

Lower impeller tip speeds extend parts wear life 2-3 times.

Rugged cast iron construction.

Dual silicon carbide mechanical seals.

Internal Thermal motor protection and Tsurumi's exclusive oil lifter.

Anti wicking cable entrance.

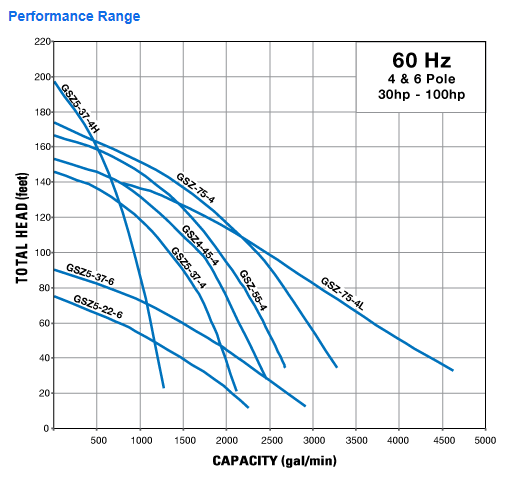

GSZ Performance Range


Model GSZ-75-4L
Discharge Size (in.) 10
Motor Output (HP) 100
Pole 4-1800
Voltage (V) 460/575
Diameter (in.) 41 5/16
Height (in.) 68 5/16
Weight (lbs.) 2640
