Tsurumi Pump HS3.75S-61

Double tap to zoom



Features

HS2.4S/3.75S:

  • Built-in shaft mounted agitator suspends solids.
  • Urethane Semi Vortex Impeller for maximum durability and pump performance.
  • Double Inside Mechanical Seal With SiC faces provides longest operational life.
  • Oil Lifter provides lubrication of the seal faces. (Patent Pending)
  • V-Ring Seal Protector protects mechanical seal from abrasive particles.



OPTIONAL ACCESSORIES

  • Vertical Discharge Coupling.
  • Low Level Kit
  • 2-inch NPT coupling available for HS3.75S-61.n.

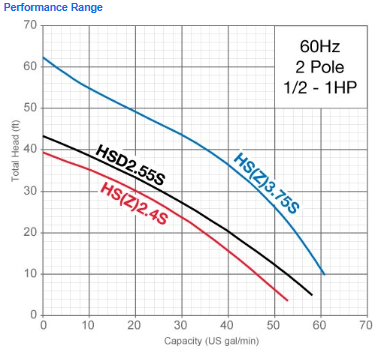

HS Series Performance Range

Specifications

Model HS3.75S-61
Discharge Size (in.) 3 in.
Motor Output (HP) 1 hp
Voltage (V) 110V or 220V
Cable Length (ft.) 32 ft
Diameter (in.) 12 7/16 (Max. in.)
Height (in.) 15 1/4 (Max. in.)
Weight (lbs.) 47 lbs.
