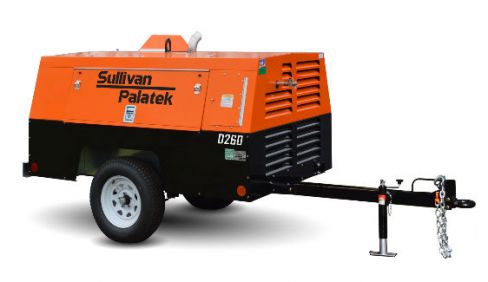

Sullivan Palatek Wheel Mount - D260PDDZ

Double tap to zoom



Features

The D260PDDZ is a dual pressure/dual capacity portable air compressor, which delivers 260 CFM at 100 psi or 185 CFM at 150 psi. At its core, a Tier 4 Final Duetz engine and 127 mm diameter twin screw air end made by Sullivan-Palatek power the portable unit. The compressor is also equipped with a state of the art Sullivan-Palatek Electronic Controller (SPEC), providing digital readouts on everything from compressor temperature to complete engine diagnostics.

At 260 CFM/100 psi the compressor is capable of running up to three 90 lbs breakers for large demolition, and up to eight 15 lbs Chipping Hammers for light demolition and concrete restoration. At 185 CFM/150 psi, the unit is ideal for sandblasting and pipe testing while running a 5/16” nozzle up to 140 psi at the tank.

Specifications

  • CFM : 260 cfm (7.4 m3/min) & 185 cfm (5.2 m3/min)
  • Rated Pressure : 100 psig (6.9 Bar) & 150 psig (10.4 Bar)
  • Operating Range : 70-125 psig (4.8-8.6 Bar)
  • Engine Make : Deutz
  • Engine Model : 2.9L4 Tier 4 Final
  • Engine Type : Diesel
  • Full Speed : 2500 RPM
  • Fuel Capacity : 29 gal (109.8 L)
  • Weight : 2500 lbs
