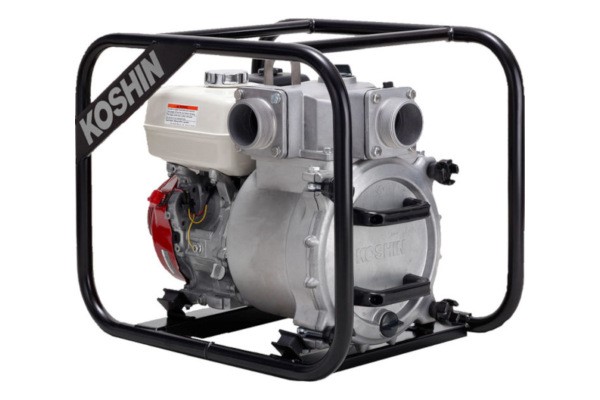

Koshin KTH-80S

Double tap to zoom



Features

  • The clean-out cover and volute can be easily removed without removing the Suction Hose for easy cleaning of debris.
  • The seal is the heart of the pump. Silicon Carbide seals, developed exclusively for Koshin, vastly increase the durability of the mechanical seal and protect engine shaft.
  • Impeller is Hi-chrome cast iron. Volute manufactured from Spheroidal Graphite cast iron. These materials employed to ensure long life and low maintenance. No wear-out plates.
  • Sturdy steel wrap-around pipe frame protects entire unit.
  • Rubber mountings minimize vibration.
  • Honda OHV engine with oil alert, and electronic ignition provides reliability and low fuel consumption.
  • All aluminum die cast pump housing for light weight and portability.

Specifications

Specifications KTH-80S
PUMP
Connection Dia. 3" NPT
Delivery Volume 383 GPM
Delivery Head 89 Ft.
Suction Lift 26 ft
Max Suspended Solids 30%
Pressure 38.5 PSI
ENGINE
Engine Model GX270
Horse Power 8.5 Hp
Displacement 270cc
Fuel Tank Capacity 1.39 gal
Starting Recoil
Net Weight   161 lbs.
Dimensions 28"x23"x24"
