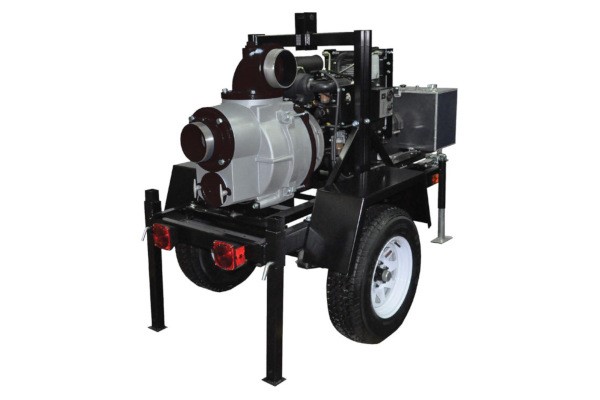

Koshin KTD-150

Double tap to zoom



  • Cast Aluminum w/Cast Iron and Stainless Steel Parts for Long Lasting Durability
  • Silicon Carbide/Buna N Mechanical Seal
  • Built-in Flapper Check Valve for Fast Priming to 26 ft.
  • Delivers up to 1000 GPM
  • Digital Tachometer/hourmeter Installed
  • Low Oil Alert
  • D>O>T> Approved Trailer - 2000# Axle, 2" Ball Coupler, 3x2000# Jack Stands
  • Easy Cleanout and Service Features with the unique Patent Pending Slide Mechanism
  • Includes Tools, with Open End and Hex Wrench Sets for Servicing Pump
  • Maximum Temperature 180F
  • 12 VDC Electric Start, Hourmeter, Tachometer


Specifications KTD-150
Discharge 6" NPT-F
Suction 6" NPT-M
Delivery Volume Up to 1000 GPM
Motor Output 23 HP
Type Yanmar 904cc Diesel
Tank Size 20 Gal
Run Time    12 hrs
Shipping Weight 1250 Lbs
