Tsurumi Pump LH855

Double tap to zoom



Features

Discharge sizes from 4-8 inches and horsepower range from 20-150 hp

Replaceable and adjustable high chrome wear rings provide increased wear resistance.

Built in thermal and amperage protectors prevent motor failure in run-dry or surge conditions.

High pressure dual silicon carbide mechanical seals operate in a separate oil chamber and are capable of withstanding operating depths of 328 feet.

Seal pressure relief ports provide a flow path above the pump casing and allow water release from the pump and away from the shaft. This protects the mechanical seals from excessive pumping pressure or water hammer in high head pumping applications.

Anti-wicking cable entrance and Tsurumi's exclusive oil lifter for added protection.

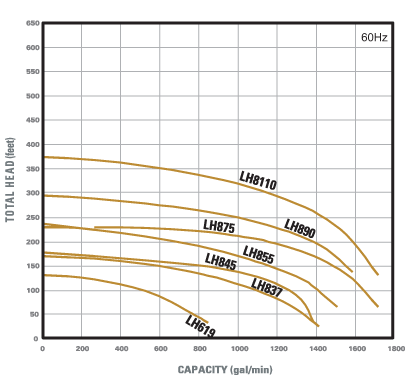

LH1 Performance Series



Specifications

Model LH855
Discharge Bore (in.) 8
Motor Output (HP) 75
Shipping Weight (lbs.) N/A
Cable Length (ft.) 50
Voltage (V) 460/575
Weight (lbs.) 1780
Diameter (in.) 21 5/8
Height (in.) 67 9/16
