Tsurumi Pump GPN415

Double tap to zoom



Features

Discharge sizes from 3-6 inches and horsepower ranges from 7.5-30 hp.

4 pole, 1800 rpm motors.

Lower impeller tip speeds extend parts wear life 2-3 times.

Rugged cast iron construction.

Dual silicon carbide mechanical seals.

Internal Thermal motor protection and Tsurumi's exclusive oil lifter.

Anti wicking cable entrance.

Hardened high chrome impeller and agitator.

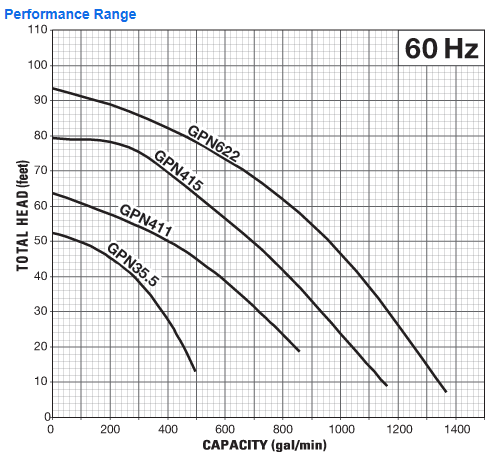

GPN Series Performance Range

Specifications

Model GPN415
Discharge Size (in.) 4
Motor Output (HP) 22
Pole 4-1800
Voltage (V) 208/220/460/575
Diameter (in.) 24 5/16
Height (in.) 33 7/8
Weight (lbs.) 485
