Features

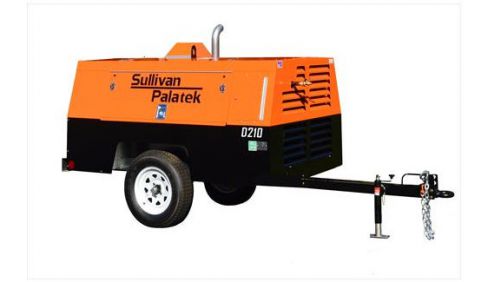

The 210PHDZ compressor is built with the contractor in mind. The larger 210 Tier 4 Final compressor has two full length tool boxes, two large service doors, galvanized inner fenders and has Galveneal coating and powder coated sheet metal for rust and scratch protection, plus a cooler cleaning access panel. Powered by a 74 hp DEUTZ diesel engine, this design has two stage air filters and large 29 gallon fuel tank for full shift duties.

Our 185 through 210 designs all feature the same heavy duty components and advanced profile large 108mm rotary screws for high efficiency and carry a 3 year unlimited hour air end warranty.

Specifications

  • CFM : 210 cfm (5.9 m3/min)
  • Rated Pressure : 150 psig (10.4 Bar)
  • Operating Range : 70-165 psig (4.8-11.3 Bar)
  • Engine Make : Deutz
  • Engine Model : 2.9L4 Tier 4 Final
  • Engine Type : Diesel
  • Full Speed : 2500 RPM
  • Fuel Capacity : 29 gal (109.8 L)
  • Weight : 2385 lbs
