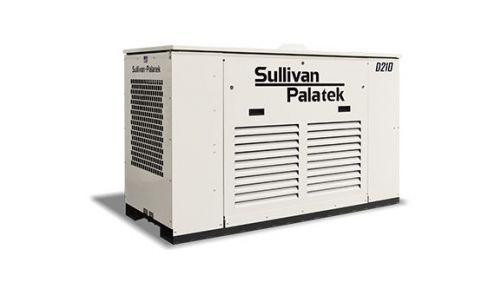

Sullivan Palatek Utility Mount - D210UHJD4PTOW

Double tap to zoom



Features

Single stage, oil flood lubricated rotary screw air compressor. The compressor package is utility mounted enclosed in a galvanenal weather-resistant acoustical enclosure.  The complete operating unit consists of a diesel engine for power, compressor assembly, air/oil separator system, cooling system for the engine and compressor oil, instrumentation, pneumatic control system, and acoustical enclosure.  Rated operating range -20 to +125°F.


• Tier 4 Final John Deere Engine
• Large, 108mm Diameter Twin Screw Air End
• Curbside Fuel Fill & Air Filter Access
• NEW! Sullivan-Palatek Electronic
Controller (SPEC)

Specifications

  • CFM : 210 cfm (5.9 m3/min)
  • Rated Pressure : 100 psig (6.9 Bar) and 150 psig (10.4 Bar)
  • Operating Range : 70-165 psig (4.8-11.4 Bar)
  • Engine Make : John Deere
  • Engine Model : 4045TFCO3A, B Tier 4 Final
  • Engine Type : Diesel
  • Full Speed : 2500 RPM
  • Fuel Capacity : 25 gal (94.6 L)
  • Weight : 2550 lbs
  • Dimensions : L80" x W35" x H57.31"
