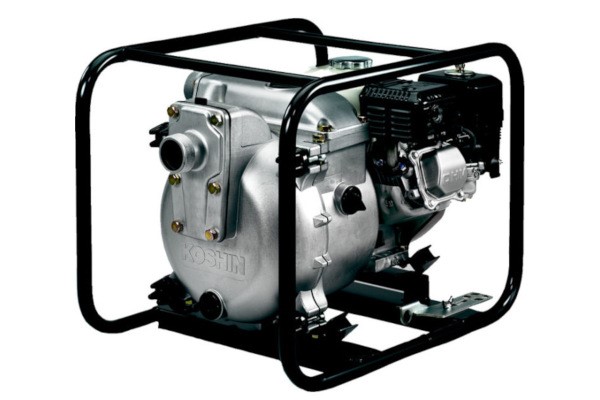

Koshin KTH-50X

Double tap to zoom



Features

  • The cleanout cover and volute can be easily removed in seconds for easy cleaning of debris.
  • The seal is the heart of the pump. Silicon Carbide seals, developed exclusively for Koshin, vastly increase the durability of the mechanical seal and protect engine shaft.
  • Impeller is Hi-chrome cast iron. Volute manufactured from Spheroidal Graphite cast iron. These materials employed to ensure long life and low maintenance. No wear-out plates.
  • Sturdy steel wrap-around pipe frame protects entire unit.
  • Rubber mountings minimize vibration.
  • Honda OHV engine with oil alert, and electronic ignition provides reliability and low fuel consumption.
  • All aluminum die cast pump housing for light weight and portability.

Specifications

Specifications KTH-50X
PUMP
Connection Dia. 2" NPT
Suction Lift 26 ft
Delivery Head 98 Ft.
Delivery Volume 185 GPM
Max Suspended Solids 30%
Pressure 39 PSI
ENGINE
Engine Model   GX160
Horse Power 4.8 HP
Displacement 163cc
Fuel Tank Capacity .82 gal
Continuous Run Time 2 Hours
Starting  Recoil
Net Weight 111 Lbs
Dimensions 24"x18"x19"
