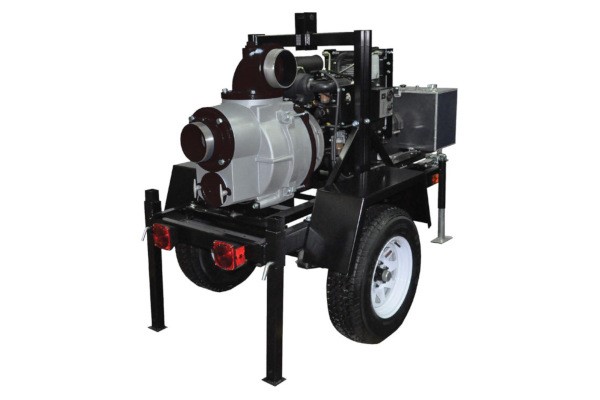

Koshin KTH-150

Double tap to zoom



Features

  • Cast Aluminum w/Cast Iron and Stainless Steel Parts for Long Lasting Durability
  • Silicon Carbide/Buna N Mechanical Seal
  • Built-in Flapper Check Valve for Fast Priming to 26 ft.
  • Delivers up to 1000 GPM
  • Digital Tachometer/hourmeter Installed
  • Low Oil Alert
  • D.O.T. Approved Trailer - 2000# Axle, 2" Ball Coupler, 3x2000# Jack Stands
  • Easy Cleanout and Service Features with the unique Patent Pending Slide Mechanism
  • Includes Tools, with Open End and Hex Wrench Sets for Servicing Pump
  • Maximum Temperature 180F
  • 12 VDC Electric Start, Hour meter, Tachometer

Specifications

Specifications KTH-150
PUMP
Discharge 6" NPT-F
Suction 6" NPT-M
Delivery Volume up to 1000 GPM
Delivery Head 98 ft
Suction Lift 26 ft
Max Suspended Solids 30%
Pressure 42.4 PSI
ENGINE
Motor Output 24 HP
Type Honda V-Twin
Displacement 670cc
Max Solids Diameter 3"
Fuel Tank Size 20 Gal
Continuous Run Time   9 hrs.
 Ship Weight  1000 Lbs.
Dimensions 77"x55"x65"
