Paving Breakers

New Equipment / American Pneumatic Tools, Inc. / Handheld Pneumatic Tools / Paving Breakers

Paving Breakers

Features

Patented ball valve design* (U.S. pat. # 8,276,682 B2) Drop-forged alloy steel handle Built-in automatic oiler Rubber handle grips Latch-type retainer	Swivel hose connection Standard universal air fitting Noise-dampening mufflers available Four-bolt backhead Replaceable chuck bushing (except for model 140/140A)
*Ball valve used on Models 117, 160, and 190.

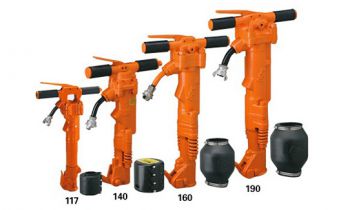

Model	CHUCK SIZE in.	BORE in.	STROKE in.	BPM	CFM @90psi	WEIGHT lbs.	LENGTH in.	AIR INLET NPT
117	7/8 x 3-1⁄4 · 1 x 4-1⁄4	1-3⁄4	3-3⁄8	1,850	34-48	33	21-3⁄4	3/8 male
140	1 x 4-1⁄4	1-7⁄8	4-1⁄4	1,500	48	43	21-1⁄8	1/2 male
160	1-1⁄8 x 6 · 1-1⁄4 x 6	2-1⁄4	4-1⁄8	1,680	60-65	68	25-3⁄4	1/2 male
190	1-1⁄8 x 6 · 1-1⁄4 x 6	2-5⁄8	6-1⁄8	1,350	75-80	91	29	3/4 male

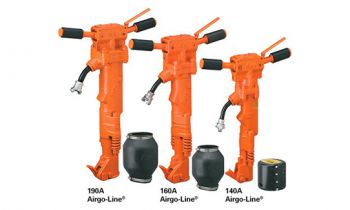

Airgo-Line® Paving Breaker

40 lb., 60 lb., 90 lb. classes

Features

Patented ball valve design* (U.S. pat. # 8,276,682 B2) Ergonomic handle dampens vibration; reduces shock to the operator	Same hitting power as standard breaker, reduces operator fatigue Replaceable vibration isolator Handle is interchangeable with APT standard model
*Ball valve used on Models 160A and 190A.

Model	CHUCK SIZE in.	BORE in.	STROKE in.	BPM	CFM @90psi	WEIGHT lbs.	LENGTH in.	AIR INLET NPT
140A	1 x 4-1⁄4	1-7⁄8	4-1⁄4	1,500	48	46	24	1/2 male
160A	1-1⁄8 x 6 · 1-1⁄4 x 6	2-1⁄4	4-1⁄8	1,680	60-65	70	28-1⁄4	1/2 male
190A	1-1.8 x 6 · 1-1.4 x 6	2-5⁄8	6-1⁄8	1,350	75-80	90	31	3/4 male
